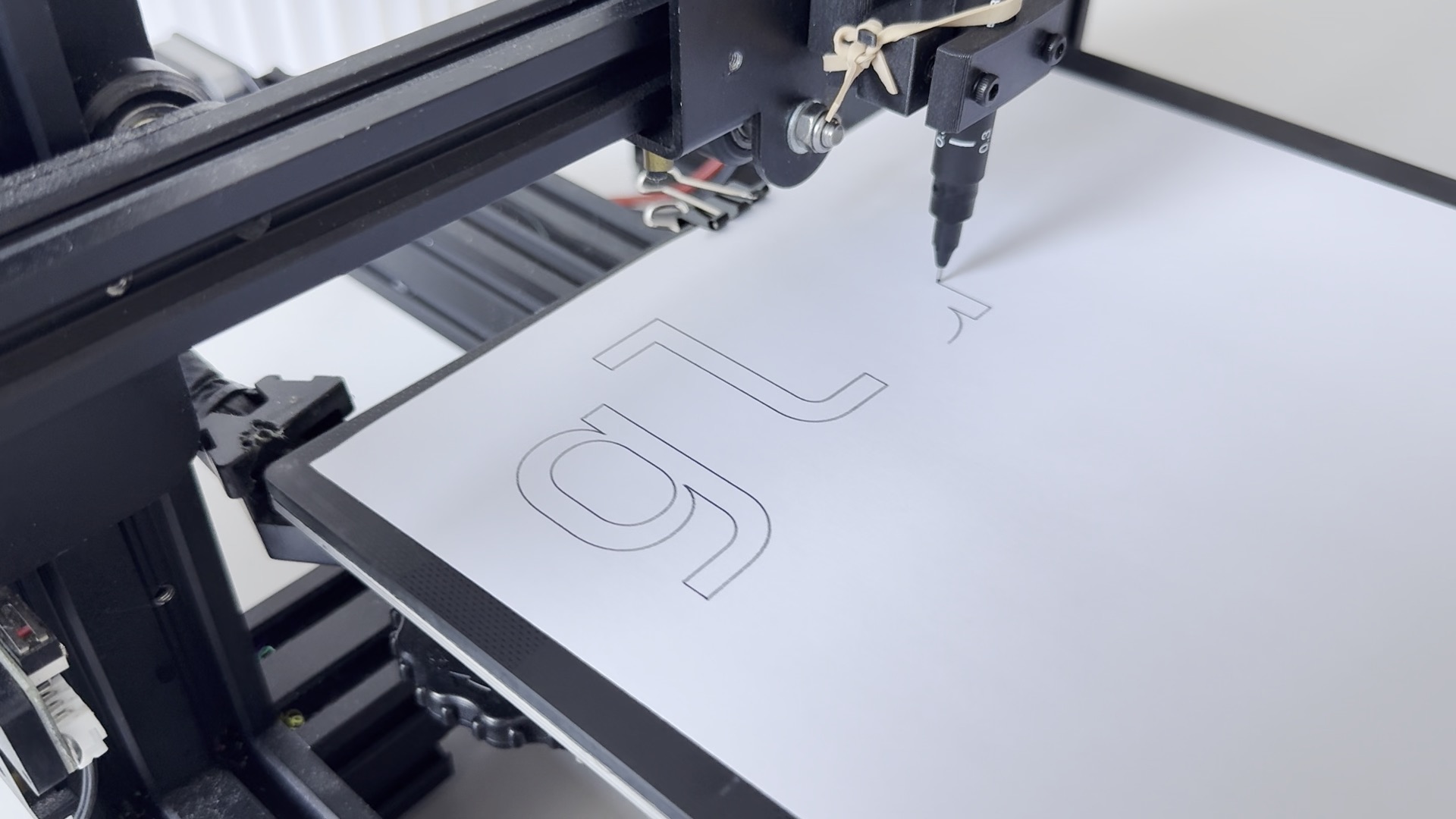

Sketchy mid-print

Accessible at http://plotter.local on the hackspace network.

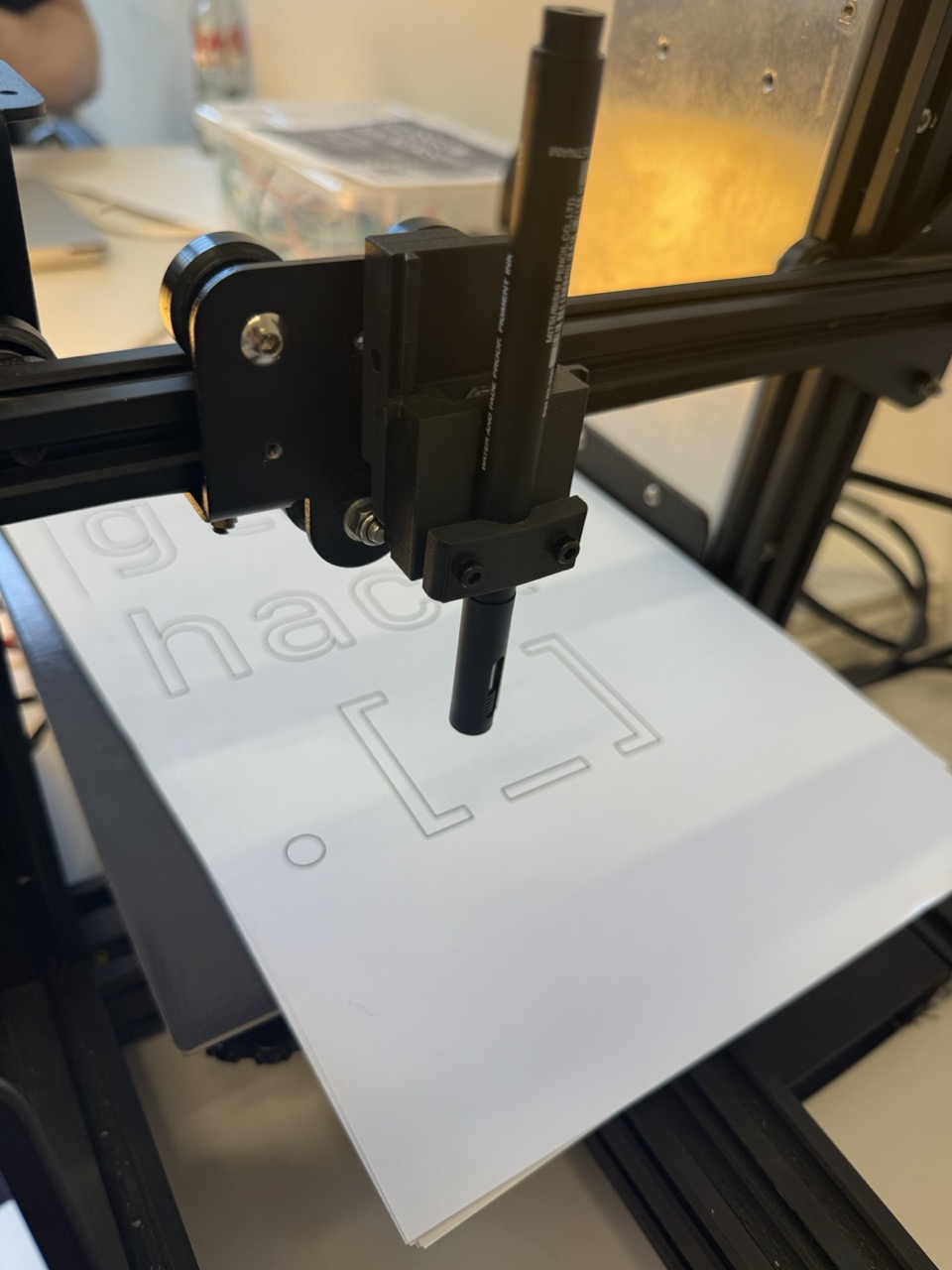

Sketchy correctly set up with a pen. Don't forget to remove the lid :3

• Consider levelling the bed. Currently this is a manual process.
• Put a scrap piece of paper on the bed of the plotter.
• Set the printer's Z co-ordinate to 0.
• Unscrew the M3 bolts on the toolhead.
• Put a pen in the toolhead and allow it to touch the paper.
  • we've found good results from a Uni PIN 0.3mm, but you can experiment with all sorts of implements!
• Tighten the M3 bolts, you'll want to use a decent amount of torque to ensure the pen doesn't wobble left-to-right as the plotter prints.

You can use this inkscape extension to generate gcode from an svg. There's a good tutorial on how to use this extension towards the bottom of this PDF.

Make sure that you have correctly set your working Z-height for your pen, and have set the right x/y starting/ending points. It's a good idea to double check this by moving the toolhead in mainsail to reasonable starting/end points (lower left, upper right).

You can upload your generated gcode to the printer via http://plotter.local as usual. It's a good idea to secure your paper, for example using masking tape or bulldog clips.

The toolhead is designed by zoemaestra, and you can find the STL files on Printables.
